Voltage Rating250V
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 10-140-Y technical specifications.
General
Contact Material
Brass
Contact Plating
Nickel
Current Rating
15A
Depth
10.31mm
Housing Color
Black
Lead Free
Lead Free
Length
111.94mm
Material
Phenolic
Max Current Rating
15A
Max Operating Temperature
148°C
Min Operating Temperature
-48°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Circuits
10
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Package Quantity
500
Pitch
9.53mm
Reach SVHC Compliant
No
Series
140
Termination
Solder
Voltage Rating
250V
Width
22.23mm
Wire Gauge (Max)
16AWG
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Molex 10-140-Y Datasheet
Download the complete datasheet for Molex 10-140-Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

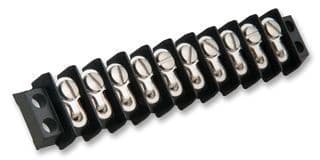

Product Images
