Voltage Rating250V
Current Rating20A
MountingPanel
Quick Jump:
Technical Specifications

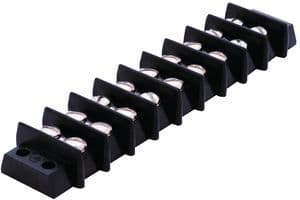

Molex 10-141 technical specifications.
General
Contact Material
Brass
Contact Plating
Nickel
Current Rating
20A
Depth
12.7mm
Height
33.32mm
Housing Color
Black
Length
130.18mm
Material
Phenolic
Max Current Rating
20A
Max Operating Temperature
148°C
Min Operating Temperature
-48°C
Max Voltage Rating (AC)
250V
Mount
Panel
Number of Circuits
10
Number of Contacts
10
Number of Rows
2
Orientation
Straight
Pitch
11.13mm
Reach SVHC Compliant
No
Series
141
Termination
Screw
Voltage Rating
250V
Width
28.58mm
Wire/Cable Gauge
14AWG
Compliance
RoHS
Compliant
Datasheet
Molex 10-141 Datasheet
Download the complete datasheet for Molex 10-141 to view detailed technical specifications.
