96-position, 1-row right-angle surface mount connector with 0.5mm pitch. Features gold-plated bronze contacts and a PBT/glass/polybutylene actuator. Rated for 50V and 500mA, operating between -20°C and 85°C. Compliant with ELV, RoHS, and REACH SVHC standards, with UL94 V-0 flammability rating and low halogen content. Packaged on tape and reel for automated assembly.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 104083-9617 technical specifications.
General
| Actuator Color | Black |
| Actuator Material | PBT, Glass, Polybutylene |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Circuits | 96 |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 104083 |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 104083-9617 Datasheet
Download the complete datasheet for Molex 104083-9617 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

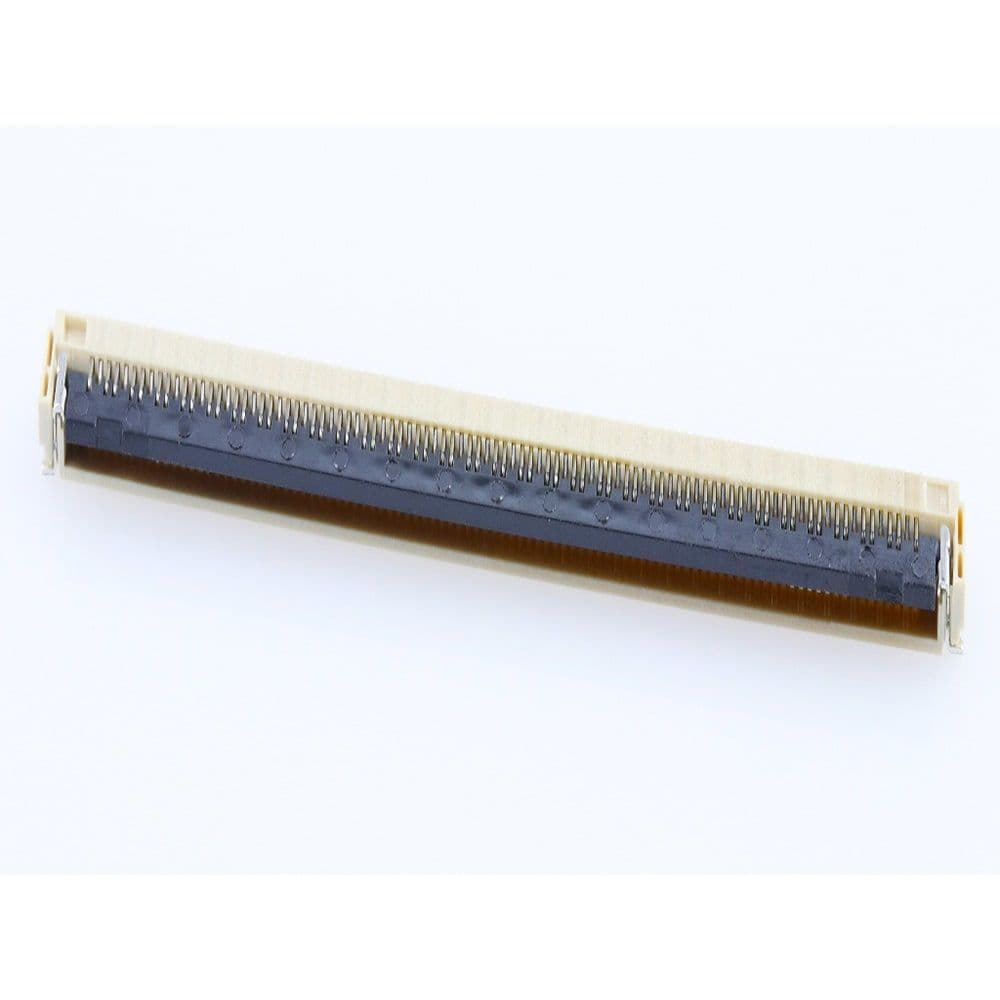

Product Images
