Technical Specifications
Molex 1050340001 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 28.3mm |
| Glow Wire Compliant | Non-compliant |
| Length | 22.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1100 |
| Packaging | Tape and Reel |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Series | 105034 |
| Termination | Solder |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 1050340001 Datasheet
Download the complete datasheet for Molex 1050340001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

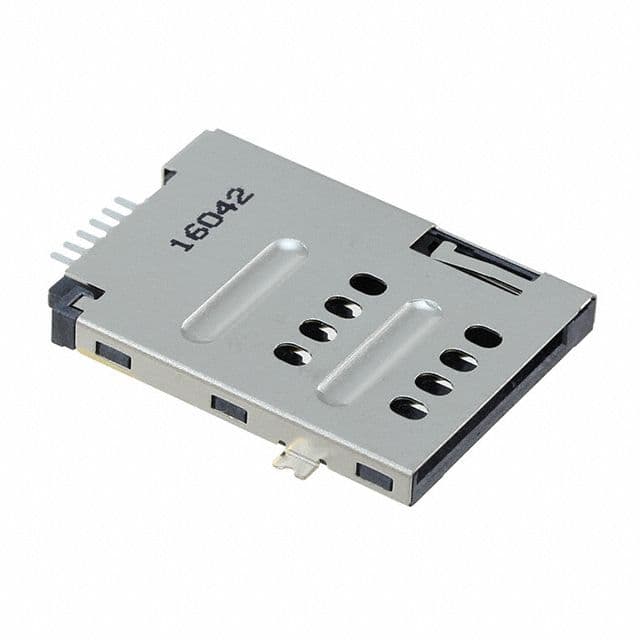

Product Images
