Technical Specifications
Molex 1212010002 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Silver
Current Rating
16A
Depth
26.8mm
Halogen Free
Low Halogen
Length
50mm
Max Operating Temperature
90°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Contacts
3
Number of Positions
3
Orientation
Right Angle
Packaging
Bulk
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
121201
Termination
Screw
Voltage Rating
300V
Voltage Rating (AC)
250V
DC Rated Voltage
300V
Compliance
RoHS
Compliant
Datasheet
Molex 1212010002 Datasheet
Download the complete datasheet for Molex 1212010002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

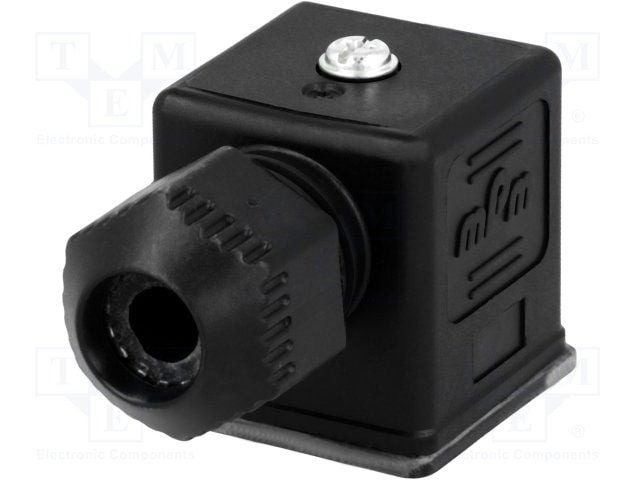

Product Images
