Molex
15-04-5104
Board Connector, 10 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 15-04-5104 technical specifications.
General
Contact Gender
Female
Depth
19.05mm
Length
16.91mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
10
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
70013
Termination
Crimp
Width
19.05mm
Compliance
RoHS
Compliant
Datasheet
Molex 15-04-5104 Datasheet
Download the complete datasheet for Molex 15-04-5104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

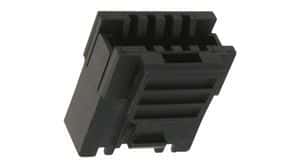

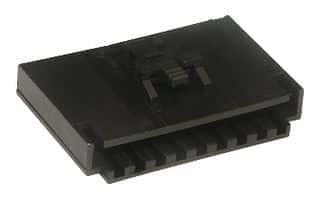

Product Images
