Technical Specifications
Molex 15-140 technical specifications.
General
Contact Material
Brass
Contact Plating
Nickel
Current Rating
15A
Depth
10.31mm
Housing Color
Black
Lead Free
Lead Free
Length
159.56mm
Material
Phenolic
Max Operating Temperature
149°C
Min Operating Temperature
-48°C
Number of Contacts
15
Number of Positions
15
Number of Rows
2
Orientation
Straight
Package Quantity
500
Pitch
9.53mm
Reach SVHC Compliant
No
Series
140
Voltage Rating
250V
Width
22.23mm
Wire Gauge (Max)
16AWG
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Molex 15-140 Datasheet
Download the complete datasheet for Molex 15-140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

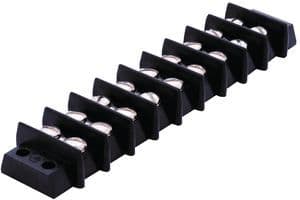

Product Images
