8-circuit, 2-row male header connector with a 2.54mm pitch. Features gold-plated bronze contacts, a 3A current rating, and a 250V voltage rating. This straight, surface mount receptacle has a black insulator and is RoHS compliant. Operating temperature range is -40°C to 105°C.
Voltage Rating250V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 15-91-3080 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 5.08mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Length | 10.16mm |
| Material | Bronze |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 2808 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Series | 71308 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 15-91-3080 Datasheet
Download the complete datasheet for Molex 15-91-3080 to view detailed technical specifications.
No datasheet is available for this part.

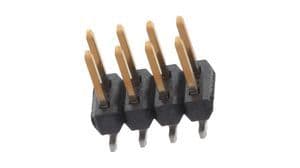

Product Images
