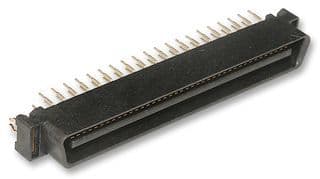

80-position, 2-row male header with a 2.54mm pitch, designed for through-hole mounting and straight orientation. Features copper alloy contacts with gold plating, rated for 1A current and 30V voltage. Constructed with a black, low halogen, UL94 V-0 rated housing, operating within a -40°C to 105°C temperature range. This RoHS compliant component offers a 62.2mm length and 9.84mm depth.
Voltage Rating30V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 15-92-2080 technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
1A
Depth
9.84mm
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Housing Color
Black
Lead Free
Lead Free
Length
62.2mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Circuits
80
Number of Contacts
80
Number of Ports
1
Number of Positions
80
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
EBBI™ 71661
Termination
Solder
Voltage Rating
30V
Compliance
RoHS
Compliant
