Rectangular header connector with 2 positions and 2 circuits, featuring a 2.54mm pitch and right-angle orientation for through-hole mounting. Male pin contacts made of brass with tin plating offer a 4A current rating and 250V voltage rating. The black nylon housing is UL94 V-2 rated, low halogen, and glow wire compliant, operating within a -40°C to 105°C temperature range.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 171857-0002 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Brass, Tin |
| Contact Mating Length | 6.73mm |
| Contact Plating | Tin, Matte |
| Contact Post Length | 2.54mm |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Length | 4.93mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 6000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | KK 171857 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 171857-0002 Datasheet
Download the complete datasheet for Molex 171857-0002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

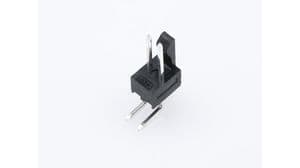

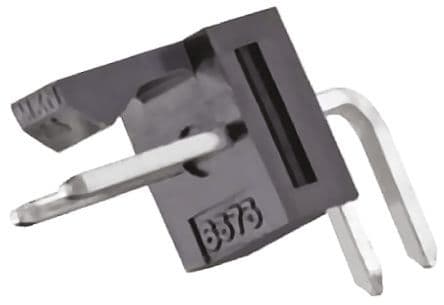

Product Images
