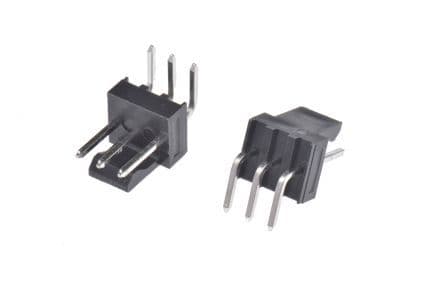

Right angle male pin header, featuring a 2.54mm pitch and 3 positions across a single row. Constructed with brass, tin-plated contacts offering a 6.73mm mating length and 2.54mm post length, rated for 4A current and 250V voltage. The black nylon housing and insulation are UL94 V-2 flammability rated and low halogen. Designed for through-hole mounting with solder termination, operating within a -40°C to 105°C temperature range.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 171857-0003 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Brass, Tin |
| Contact Mating Length | 6.73mm |
| Contact Plating | Tin, Matte |
| Contact Post Length | 2.54mm |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Length | 7.47mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | KK 171857 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
