Molex
172159-0609
MOLEX 172159-0609 Connector Housing, EdgeMate Series, 9 Ways, 3.96 mm, 172160 Series Crimp Contacts
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 172159-0609 technical specifications.
General
Color
White
Depth
7.6mm
Flammability Rating
UL94 V-2
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Insulation Material
Nylon
Length
46.08mm
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Free Hanging, Cable
Number of Circuits
9
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Orientation
Right Angle
Packaging
Bulk
Pitch
3.96mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Series
EDGEMATE 172159
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Molex 172159-0609 Datasheet
Download the complete datasheet for Molex 172159-0609 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

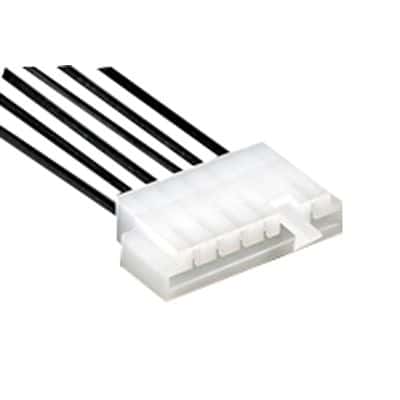

Product Images
