Female quick disconnect terminal featuring brass construction with tin plating for reliable conductivity. Designed for 24-26 AWG wire, this insulated terminal offers a straight, box mount orientation and a maximum operating temperature of 105°C. It operates within a voltage rating of 600V and is RoHS compliant. The yellow nylon insulation ensures clear identification and protection.
Voltage Rating600V
MountingBox
Quick Jump:
Technical Specifications
Molex 19003-0071 technical specifications.
General
| Color | Yellow |
| Contact Material | Brass |
| Contact Plating | Tin |
| ELV | Compliant |
| Gender | Female |
| Glow Wire Compliant | Compliant |
| Insulation | Insulated |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Box |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 19003 |
| Terminal Material | Brass |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 26AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 19003-0071 Datasheet
Download the complete datasheet for Molex 19003-0071 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

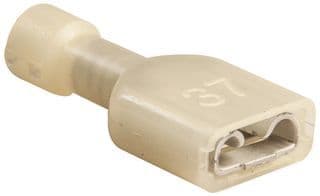

Product Images
