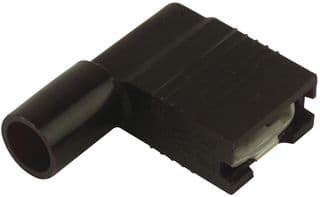

Right-angle, insulated push-on terminal designed for 0.8 mm² wire. Features brass body and contact material with tin plating for the body and chromate plating for the contact. Operates within a temperature range of -65°C to 105°C with a 300V voltage rating. Constructed with nylon insulation and a UL94 V-2 flammability rating. Supplied in tape and reel packaging for efficient assembly.
Voltage Rating300V
MountingAdhesive
Quick Jump:
Technical Specifications
Molex 19006-0003 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Color | Natural, Red |
| Contact Material | Brass |
| Contact Plating | Chromate |
| Depth | 17.53mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 15.75mm |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Adhesive |
| Orientation | Right Angle |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 19006 |
| Terminal Material | Brass |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
