Right-angle, female push-on terminal designed for 10-12 AWG wire. Features a 5 mm² cross-sectional area and a 600V voltage rating. Constructed with a brass body plated in tin, and copper/brass contacts with tin and chromate plating. Insulated with yellow nylon, offering a temperature range of -65°C to 105°C. Compliant with RoHS, ELV, and low halogen standards, with a UL94 V-2 flammability rating.
Voltage Rating600V
Quick Jump:
Technical Specifications
Molex 19006-0019 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Color | Natural, Yellow |
| Contact Material | Copper, Brass |
| Contact Plating | Chromate, Tin |
| Depth | 9.9mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Insulation | Insulated |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 19.45mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Orientation | Right Angle |
| Package Quantity | 500 |
| Packaging | Bag |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 19006 |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 19006-0019 Datasheet
Download the complete datasheet for Molex 19006-0019 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

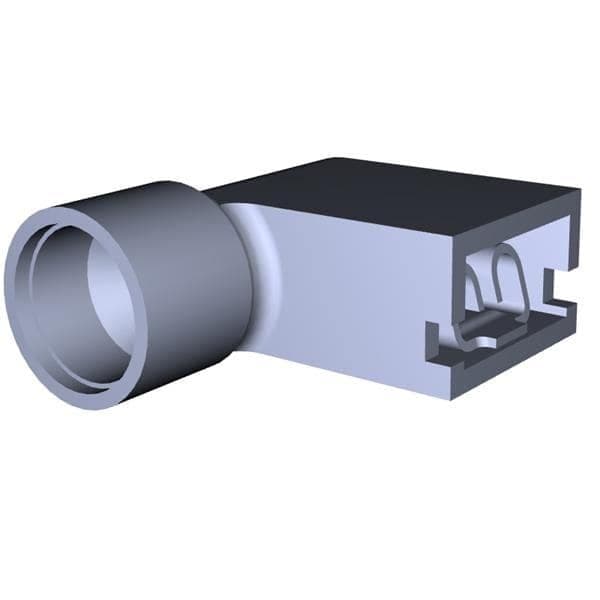

Product Images
