This female brass header is rated for 600V and features a wire gauge range of 18-22AWG. It is compliant with UL94 V-2 flammability rating and RoHS regulations. The header is made of brass with a tin plating and has a nylon insulation material. It is packaged in bags of 1000 units and is compliant with Reach SVHC regulations.
Voltage Rating600V
Quick Jump:
Technical Specifications
Molex 19038-0037 technical specifications.
General
| Color | Natural, Red |
| Contact Material | Brass |
| Contact Plating | Tin |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Material | Brass |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 19038 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 19038-0037 Datasheet
Download the complete datasheet for Molex 19038-0037 to view detailed technical specifications.
No datasheet is available for this part.

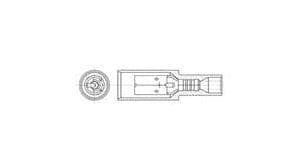

Product Images
