Molex
21020-0109

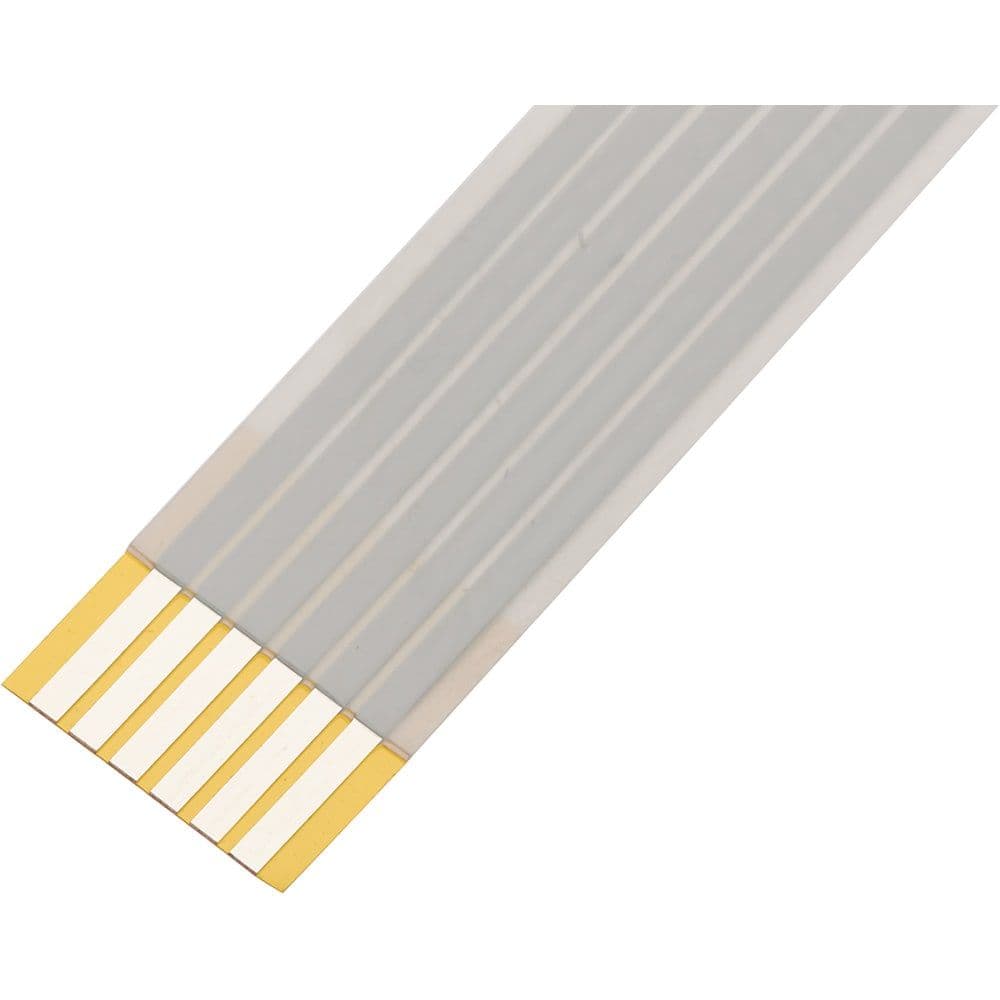

Cable Assembly 0.203m 0.5mm 10 POS Premo Flex FFC Jumper to Premo Flex FFC Jumper Premo-Flex™FFC Jumper Bag
Voltage Rating30V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 21020-0109 technical specifications.
General
Cable Pitch
0.5mm
Color
White
Contact Location
Same Side
Current Rating
500mA
ELV
Compliant
Lead Free
Lead Free
Length
203mm
Max Current Rating
500mA
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Number of Circuits
10
Number of Conductors
10
Number of Contacts
10
Number of Positions
10
Packaging
Bag
Pitch
0.5mm
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Molex 21020-0109 Datasheet
Download the complete datasheet for Molex 21020-0109 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
