2-circuit, 1-row female plug connector with a 2.54mm pitch, designed for free-hanging, cable mounting. Features include a straight orientation, crimp termination, and a locking mechanism. Constructed with bronze and brass contacts, it boasts a 4A max current rating and 250V voltage rating. The white insulator housing is UL94 V-0 flammability rated and lead-free. Operating temperature range is 0°C to 75°C, with UL and CSA approvals.
Voltage Rating250V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 22-01-2027 technical specifications.
General
Approvals
UL, CSA
Color
White
Contact Gender
Female
Contact Material
Bronze, Brass
Contact Type
Non-Gendered
Depth
12.7mm
Flammability Rating
UL94 V-0
Gender
Female
Height
4.82mm
Housing Color
White
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
5.64mm
Max Current Rating
4A
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Free Hanging, Cable
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
5000
Packaging
Bag
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK® 2695
Termination
Crimp
Voltage Rating
250V
Width
4.82mm
Compliance
RoHS
Compliant
Datasheet
Molex 22-01-2027 Datasheet
Download the complete datasheet for Molex 22-01-2027 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

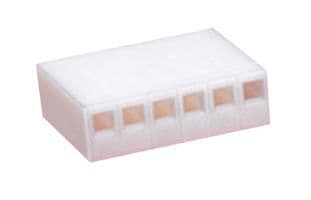

Product Images
