4-circuit, 1-row female board connector with a 2.54mm pitch. Features a straight, free-hanging/cable mount orientation and crimp termination. Constructed with bronze and brass contacts, it offers a 4A max current rating and 250V voltage rating. Housing is white, UL94 V-0 flammability rated, and low halogen. Operating temperature range is 0°C to 75°C.
Voltage Rating250V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 22-01-2041 technical specifications.
General
Approvals
UL, CSA
Color
White
Contact Gender
Female
Contact Material
Bronze, Brass
Contact Type
Non Gendered
Depth
12.7mm
Flammability Rating
UL94 V-0
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
4.82mm
Housing Color
White
Lead Free
Lead Free
Length
10.72mm
Max Current Rating
4A
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Free Hanging, Cable
Number of Circuits
4
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
KK® 2695
Termination
Crimp
Voltage Rating
250V
Width
4.82mm
Compliance
RoHS
Compliant
Datasheet
Molex 22-01-2041 Datasheet
Download the complete datasheet for Molex 22-01-2041 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

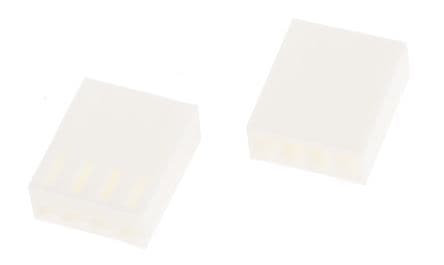

Product Images
