8-position, 1-row female board connector with a 2.54mm pitch. Features a straight, free-hanging, cable-mount design and crimp termination. Constructed with a nylon/polyamide body and bronze/brass contacts, it offers a 4A max current rating and 250V voltage rating. This connector is UL and CSA approved, RoHS compliant, and has a UL94 V-0 flammability rating.
Voltage Rating250V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 22-01-2087 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Nylon, Polyamide |
| Color | White |
| Contact Gender | Female |
| Contact Material | Bronze, Brass |
| Contact Type | Non Gendered |
| Depth | 12.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 4.82mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 20.88mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Free Hanging, Cable |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 2695 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-01-2087 Datasheet
Download the complete datasheet for Molex 22-01-2087 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

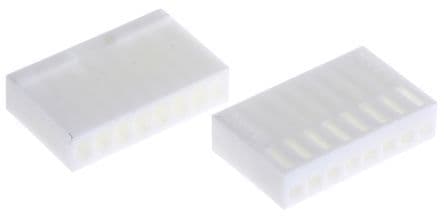

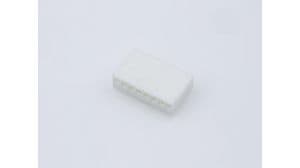

Product Images
