MOLEX

22-01-3027

Datasheet

2 Pos 1 Row Female Header, 2.54mm Pitch, 4A, 250V, Crimp

Molex

22-01-3027

Name: 22-01-3027 Molex
Brand: Molex
SKU: 22-01-3027

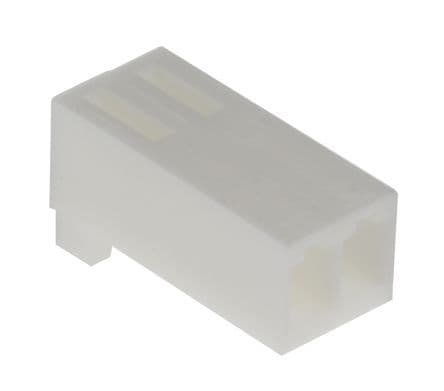

2 Pos 1 Row Female Header, 2.54mm Pitch, 4A, 250V, Crimp

2-circuit, 1-row female header connector with 2.54mm pitch, designed for free-hanging, cable mounting. Features a straight, plug orientation with a 4A max current rating and 250V voltage rating. Constructed with bronze and brass contacts, a white insulator, and a UL94 V-0 flammability rating. This lead-free, low-halogen component is RoHS compliant and meets UL and CSA approvals.

Voltage Rating250V

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

Molex 22-01-3027 technical specifications.

General

Approvals	UL, CSA
Color	White
Contact Material	Bronze, Brass
Contact Type	Non-Gendered
Depth	12.7mm
Flammability Rating	UL94 V-0
Gender	Female
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	4.82mm
Housing Color	White
Lead Free	Lead Free
Length	5.64mm
Max Current Rating	4A
Max Operating Temperature	75°C
Min Operating Temperature	0°C
Mount	Free Hanging, Cable
Number of Circuits	2
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Packaging	Bulk
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	KK® 2695
Termination	Crimp
Voltage Rating	250V
Width	4.82mm
