6-circuit, 1-row female header connector with a 2.54mm pitch, designed for crimp termination. Features a straight, free-hanging, cable mount orientation and a 4A maximum current rating at 250V. Constructed with bronze and brass contacts, a white housing, and a UL94 V-0 flammability rating. This low halogen, lead-free component operates between 0°C and 75°C and is RoHS compliant.
Voltage Rating250V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 22-01-3067 technical specifications.
General
| Approvals | UL, CSA |
| Color | White |
| Contact Gender | Female |
| Contact Material | Bronze, Brass |
| Contact Type | Non-Gendered |
| Depth | 12.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 4.82mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 15.8mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Free Hanging, Cable |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Bag |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK 2695 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-01-3067 Datasheet
Download the complete datasheet for Molex 22-01-3067 to view detailed technical specifications.
No datasheet is available for this part.

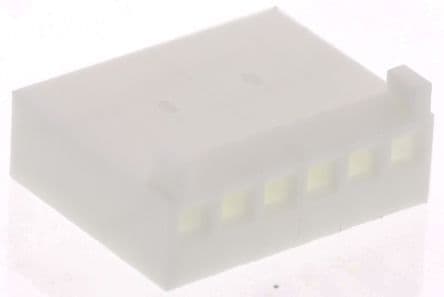

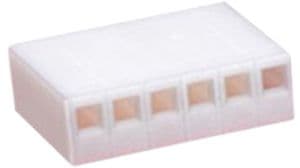

Product Images
