12-position, 1-row female receptacle connector housing with a 2.54mm pitch, designed for straight, free-hanging or cable mounting. Features a 4A max current rating and 250V voltage rating, constructed with bronze and brass contacts. This white, low halogen, lead-free housing meets UL94 V-0 flammability standards and is RoHS compliant. Operating temperature range is 0°C to 75°C.
Voltage Rating250V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 22-01-3127 technical specifications.
General
| Approvals | UL, CSA |
| Color | White |
| Contact Gender | Female |
| Contact Material | Bronze, Brass |
| Contact Type | Non-Gendered |
| Depth | 12.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 4.82mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 31.04mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Free Hanging, Cable |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 2695 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-01-3127 Datasheet
Download the complete datasheet for Molex 22-01-3127 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

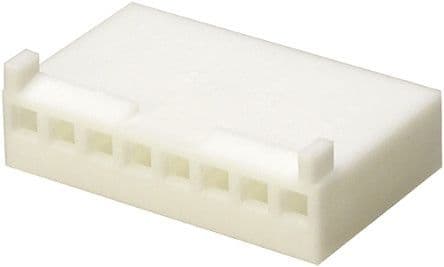

Product Images
