8-contact, 1-row male header with a 2.5mm pitch, designed for right-angle, through-hole mounting. Features brass contacts with tin/copper plating, a 3A current rating, and a 250V voltage rating. Constructed from Nylon/Polyamide with a natural insulator color and UL94 V-0 flammability rating, this RoHS-compliant component operates between -40°C and 105°C.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-05-7085 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Mating Length | 0.138inch |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 7.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Material | Nylon, Polyamide |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SPOX |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Wire/Cable Gauge | 22AWG |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-05-7085 Datasheet
Download the complete datasheet for Molex 22-05-7085 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

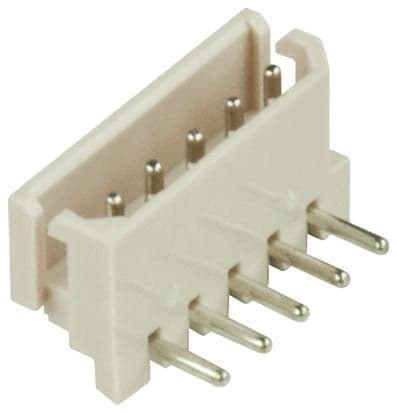

Product Images
