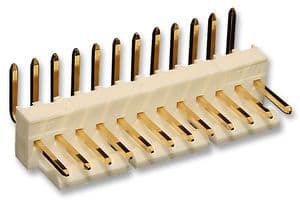

Right angle male header connector featuring 12 contacts in a single row with a 2.54mm pitch. Brass contacts with gold plating ensure reliable conductivity, supporting a 4A current rating and 250V voltage rating. The connector utilizes through-hole mounting and solder termination for secure board attachment. Its white housing is constructed from UL94 V-0 rated, low halogen material for enhanced safety and compliance.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-12-2124 technical specifications.
General
Color
White
Contact Material
Brass
Contact Mating Length
0.264inch
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
4A
Depth
12.83mm
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Housing Color
White
Lead Free
Lead Free
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Circuits
12
Number of Contacts
12
Number of Positions
12
Number of Rows
1
Orientation
Right Angle
Package Quantity
10
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
7478
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 22-12-2124 Datasheet
Download the complete datasheet for Molex 22-12-2124 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
