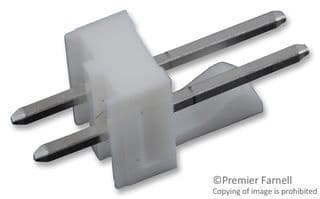

2-circuit, 1-row male header connector with 2.54mm pitch. Features straight, through-hole mounting with solder termination. Brass contacts with tin/copper plating offer a 4A current rating and 250V voltage rating. White, low halogen housing meets UL94 V-0 flammability. RoHS and REACH compliant.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-23-2021 technical specifications.
General
Approvals
UL, CSA
Color
White
Contact Material
Brass
Contact Mating Length
0.295inch
Contact Plating
Tin, Copper
Contact Type
Male Pin
Current Rating
4A
Depth
6.35mm
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
10.67mm
Housing Color
White
Lead Free
Lead Free
Length
5.08mm
Max Current Rating
4A
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
3000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 22-23-2021 Datasheet
Download the complete datasheet for Molex 22-23-2021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

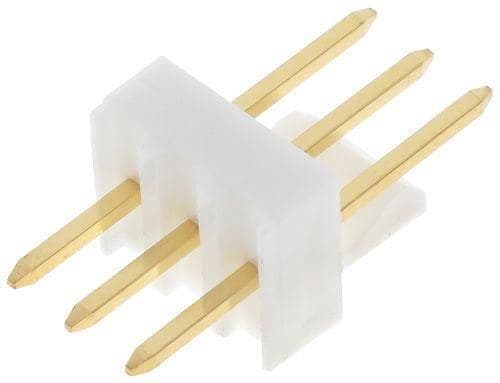

Product Images
