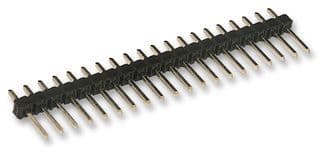

Vertical, through-hole mount male pin header with 20 positions and 1 row. Features brass contacts with tin plating, a 0.1-inch pitch, and a 0.24-inch contact mating length. Rated for 250V AC/DC, this lead-free and RoHS-compliant component has a black housing and utilizes solder termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 22-28-4200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.24inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Depth | 2.49mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 19 |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.1inch |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | KK® 42375 |
| Termination | Solder |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
