Right-angle male pin header assembly with a 2.54mm pitch, featuring 2 circuits and 2 positions. Constructed with brass contacts plated in gold for enhanced conductivity, this component offers a 4A current rating and a 250V voltage rating. The black housing is designed for through-hole mounting and operates within a temperature range of 0°C to 75°C. This RoHS compliant component utilizes solder termination.
Voltage Rating250V
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 22-28-8024 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Mating Length
0.244inch
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
4A
Gender
Male
Glow Wire Compliant
Non-compliant
Height
2.49mm
Housing Color
Black
Lead Free
Lead Free
Length
5.08mm
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
RoHS Compliant
Yes
Series
KK® 42377
Termination
Solder
Voltage Rating
250V
Width
2.29mm
Compliance
RoHS
Compliant
Datasheet
Molex 22-28-8024 Datasheet
Download the complete datasheet for Molex 22-28-8024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

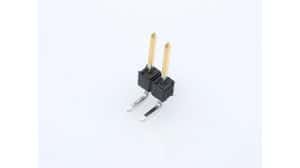

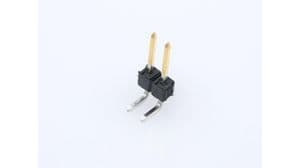

Product Images
