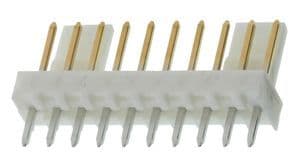

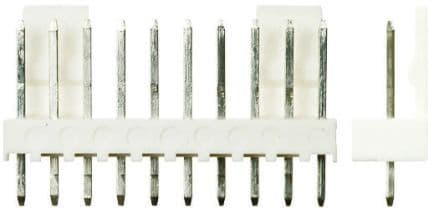

22-29-2101

2.54mm Pitch 10Ckt Vertical Header, Gold Plating, 4A, 250V

10-circuit, 2.54mm pitch wire-to-board header with male pin contacts and gold plating. Features a vertical, through-hole mount orientation and a 4A current rating. Constructed with brass contacts and a white, low halogen housing. Rated for 250V DC and operates within a 0°C to 75°C temperature range. UL94 V-0 flammability rating ensures safety.

Voltage Rating250V

Current Rating4A

MountingThrough Hole

Quick Jump:

Technical Specifications

Molex 22-29-2101 technical specifications.

General

Color	White
Contact Material	Brass
Contact Mating Length	0.295inch
Contact Plating	Gold
Contact Type	Male Pin
Current Rating	4A
Depth	5.8mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	11.7mm
Housing Color	White
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	25.4mm
Max Current Rating	4A
Max Operating Temperature	75°C
Min Operating Temperature	0°C
Mount	Through Hole
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Rows	1
Orientation	Straight
Package Quantity	10
Packaging	Bulk
Pitch	2.54mm
Plating	Tin
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	KK® 6410
Termination	Solder
Voltage Rating	250V
DC Rated Voltage	250V
Working Voltage	250V
