Dual-row, 24-position receptacle connector with a 2.54mm pitch, featuring female socket contacts. Constructed with glass and polyester body material in a black housing, this straight-orientation component is designed for free-hanging, cable mounting with crimp termination. Operating temperature range is -40°C to 105°C.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 22-55-2241 technical specifications.
General
| Body Material | Glass, Polyester |
| Color | Black |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Depth | 15.24mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 30.45mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | C-Grid® SL™ 70450 |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Molex 22-55-2241 Datasheet
Download the complete datasheet for Molex 22-55-2241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

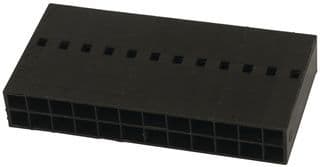

Product Images
