2-position, 1-row female receptacle connector with a 3.96mm pitch. Features a straight, free-hanging, cable mount orientation and crimp termination. Rated for 7A maximum current and 250V AC maximum voltage, with an operating temperature range of 0°C to 75°C. Constructed with a natural colored, low halogen insulator and housing.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 26-03-4020 technical specifications.
General
| Color | Natural |
| Contact Gender | Female |
| Contact Type | Non-Gendered |
| Depth | 17mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Length | 8.74mm |
| Max Current Rating | 7A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 15000 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 6442 |
| Termination | Crimp |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 26-03-4020 Datasheet
Download the complete datasheet for Molex 26-03-4020 to view detailed technical specifications.
No datasheet is available for this part.

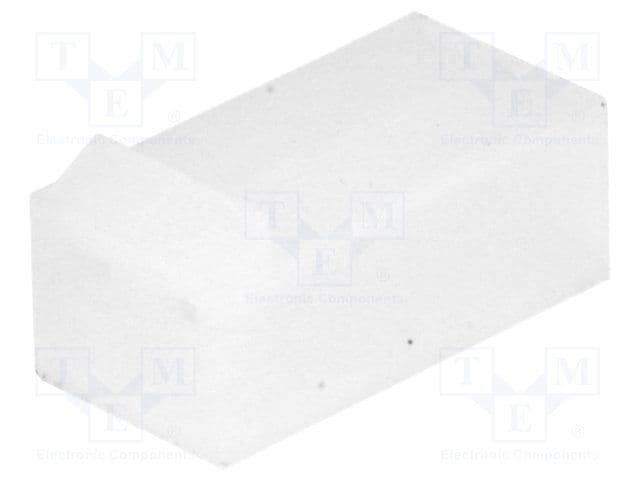

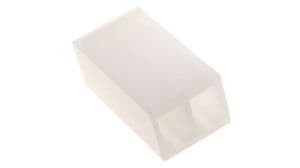

Product Images
