Molex
26-60-2020
3.96mm (.156") Pitch KK® Solid Header, Vertical, without Peg, 2 Circuits, Tin (Sn) Plating
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 26-60-2020 technical specifications.
General
Contact Material
Brass
Contact Plating
Tin, Copper
Current Rating
7A
Depth
6.35mm
Gender
Male
Housing Color
Natural
Length
7.77mm
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
2500
Packaging
Bag
Pitch
3.96mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
41771
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Molex 26-60-2020 Datasheet
Download the complete datasheet for Molex 26-60-2020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

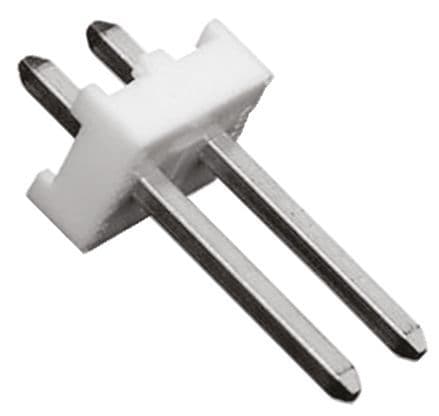

Product Images
