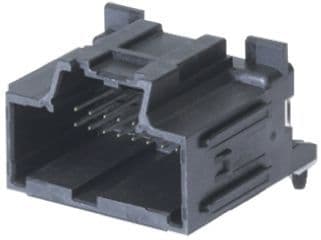

16-circuit, right-angle male header assembly featuring brass contacts with nickel and tin plating. This through-hole mount connector operates at 500V DC and a 10A current rating, with a 2.54mm pitch. Constructed with low halogen materials and RoHS compliant, it offers a temperature range of -40°C to 100°C. The black, polarized assembly is supplied in tray packaging.
Voltage Rating500V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 34691-0160 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Nickel, Tin
Current Rating
10A
Depth
31.89mm
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
22.05mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Circuits
16
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Right Angle
Package Quantity
616
Packaging
Tray
Pitch
2.54mm
Plating
Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
34691
Termination
Through Hole
Voltage Rating
500V
DC Rated Voltage
500V
Width
28.96mm
Compliance
RoHS
Compliant
