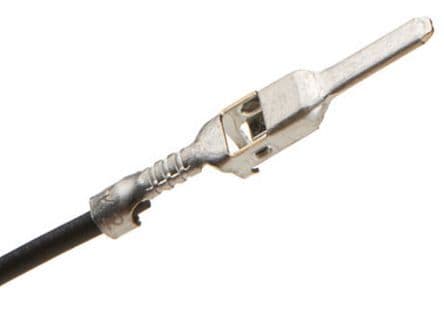

This male header connector, designed for cable mounting with a straight orientation, features brass contacts with tin plating for signal transmission. It supports a wire gauge range of 18 to 16 AWG and offers a maximum current rating of 10A. Operating within a temperature range of -40°C to 120°C, this low halogen component is RoHS compliant and supplied on tape and reel.
MountingCable
Quick Jump:
Technical Specifications
Molex 35747-0210 technical specifications.
General
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Signal
Depth
4.2mm
Gender
Male
Halogen Free
Low Halogen
Height
4mm
Length
21.8mm
Max Current Rating
10A
Max Operating Temperature
120°C
Min Operating Temperature
-40°C
Mount
Cable
Orientation
Straight
Package Quantity
16000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
35747
Shielding
Unshielded
Termination
Crimp
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
18AWG
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
Molex 35747-0210 Datasheet
Download the complete datasheet for Molex 35747-0210 to view detailed technical specifications.
