Technical Specifications
Molex 36757-0063 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 20A |
| Flammability Rating | UL94 V-2 |
| Glow Wire Compliant | Compliant |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 880 |
| Packaging | Tray |
| Pitch | 6.35mm |
| RoHS Compliant | Yes |
| Series | 43255 |
| Termination | Through Hole |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 36757-0063 Datasheet
Download the complete datasheet for Molex 36757-0063 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

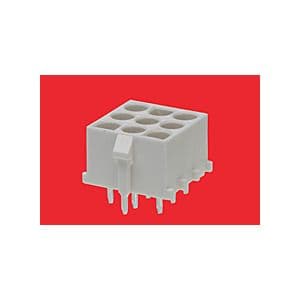

Product Images
