7-position, 2-row terminal block for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features screw termination for wire gauges 24-12 AWG, with a 9.53mm pitch. Rated for 300V and 20A, with a maximum operating temperature of 110°C. Constructed from black PBT insulation and brass contacts with tin/nickel plating. Panel or chassis mountable, with UL and CSA approvals.
Voltage Rating300V
Current Rating20A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Molex 38770-0107 technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Material
Brass
Contact Plating
Tin, Nickel
Current Rating
20A
Depth
11.2mm
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Material
PBT
Lead Free
Lead Free
Length
83.3mm
Material
PBT
Max Operating Temperature
110°C
Min Operating Temperature
0°C
Mount
Panel, Chassis
Number of Circuits
7
Number of Contacts
14
Number of Poles
7
Number of Positions
7
Number of Rows
2
Number of Wire Entries
14
Orientation
Straight
Package Quantity
1
Packaging
Tray
Pitch
9.53mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
38770
Terminal Finish
Zinc
Terminal Material
Steel
Termination
Screw
Voltage Rating
300V
DC Rated Voltage
150V
Width
22.4mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Molex 38770-0107 Datasheet
Download the complete datasheet for Molex 38770-0107 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

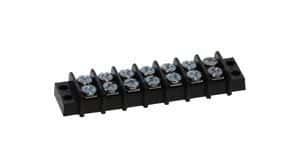

Product Images
