Female, straight, signal contact type assembly tool for push-on terminals. Features brass contacts with tin, copper, gold, and brass plating, rated for 9A current and 250V AC/DC voltage. Accommodates wire gauges from 24AWG to 18AWG with a maximum wire/cable diameter of 3.1mm. Operating temperature range is -40°C to 105°C. RoHS compliant with a 4.2mm pitch and 16 contacts across 2 rows.
Resistance0.01R
Voltage Rating600V
Current Rating9A
MountingThrough Hole, Cable
Quick Jump:
Technical Specifications
Molex 39-00-0039 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin, Copper, Gold, Brass |
| Contact Type | Signal |
| Current Rating | 9A |
| Depth | 3.6mm |
| Gender | Female |
| Height | 4.5mm |
| Housing Color | Natural |
| Length | 14.7mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Through Hole, Cable |
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 0.01R |
| RoHS Compliant | Yes |
| Series | 5556 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 250V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Diameter | 3.1mm |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-00-0039 Datasheet
Download the complete datasheet for Molex 39-00-0039 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

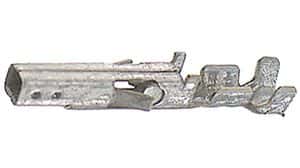

Product Images
