Rectangular power connector featuring 2 male pin contacts and a straight orientation. Rated for 13A current and 600V AC/DC, with a 4.2mm pitch. Constructed from natural colored Nylon, this connector is UL94 V-2 flammability rated and Lead Free. Approvals include UL, CSA, and TUV, with RoHS compliance. Designed for panel mounting with a snap-in feature.
Voltage Rating600V
Current Rating13A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Molex 39-01-2021 technical specifications.
General
Approvals
UL, CSA, TUV
Color
Natural
Contact Type
Male Pin
Current Rating
13A
Depth
23.9mm
Flammability Rating
UL94 V-2
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
11.6mm
Housing Color
Natural
Lead Free
Lead Free
Length
10.8mm
Material
Nylon
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600V
Mount
Panel, Snap in
Number of Contacts
2
Number of Positions
2
Number of Rows
2
Orientation
Straight
Package Quantity
5000
Packaging
Bulk
Pitch
4.2mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.165inch
Series
Mini-Fit® Jr™ 5559
Termination
Crimp
Voltage Rating
600V
DC Rated Voltage
250V
Width
11.6mm
Compliance
RoHS
Compliant
Datasheet
Molex 39-01-2021 Datasheet
Download the complete datasheet for Molex 39-01-2021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

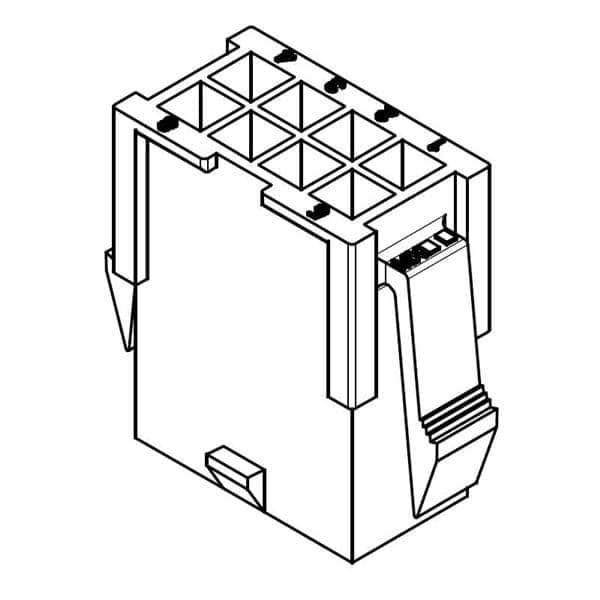

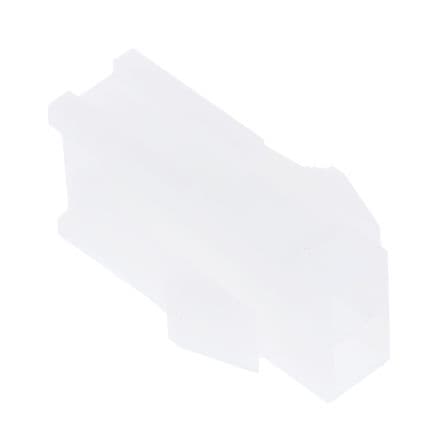

Product Images
