Rectangular power connector featuring 4 contacts and a straight, receptacle orientation. This female socket connector offers a 13A current rating and a 600V AC/DC voltage rating. Constructed from natural colored Nylon, it has a flammability rating of UL94 V-2 and operates within a temperature range of -40°C to 105°C. The connector is RoHS compliant and lead-free, with a pitch of 4.2mm.
Voltage Rating600V
Current Rating13A
Quick Jump:
Technical Specifications
Molex 39-01-2040 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Natural |
| Contact Type | Female Socket |
| Current Rating | 13A |
| Depth | 19.6mm |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 14.1mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 9.6mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 6500 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5557 |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 250V |
| Width | 15.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-2040 Datasheet
Download the complete datasheet for Molex 39-01-2040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

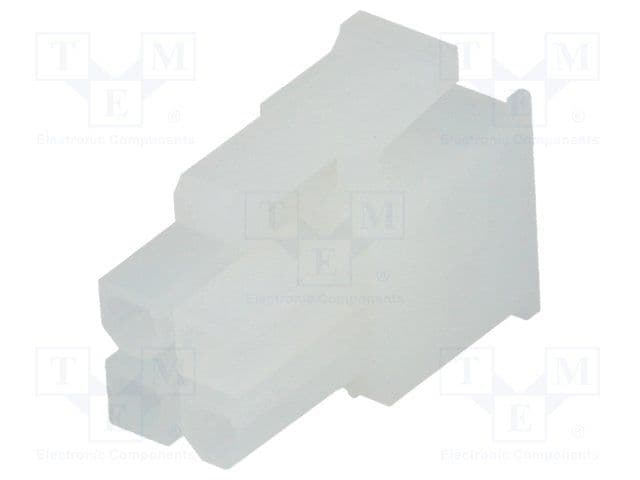

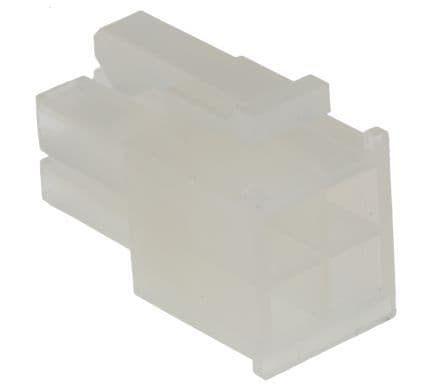

Product Images
