Rectangular power connector featuring 6 contacts in a straight, male pin configuration. This plug-style connector offers a 13A current rating and a 600V voltage rating, suitable for panel or snap-in mounting. Constructed from low halogen nylon, it operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards. Termination is via crimp, supporting wire gauges from 18AWG to 24AWG. Approvals include UL, CSA, and TUV, with RoHS compliance.
Voltage Rating600V
Current Rating13A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Molex 39-01-2066 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Beige, White |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Depth | 23.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 11.6mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 19.2mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Panel, Snap in |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5559 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 11.6mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-2066 Datasheet
Download the complete datasheet for Molex 39-01-2066 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

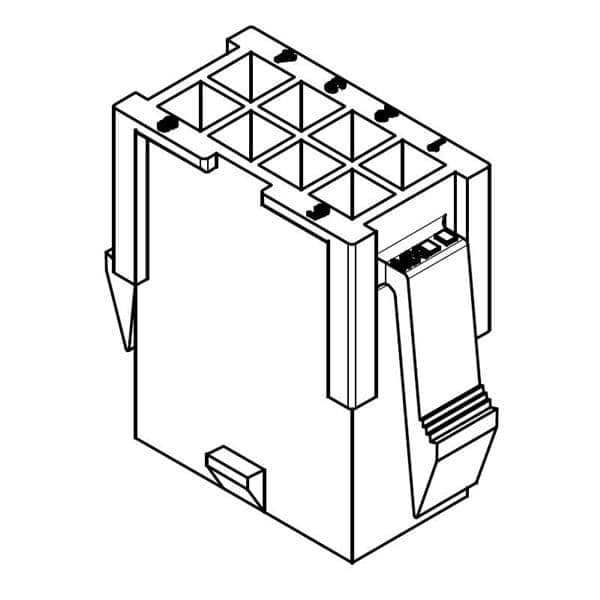

Product Images
