39-01-2145

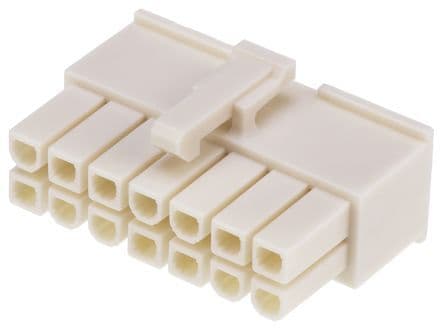

14 Pos Female Crimp Power Connector, 600V, 13A, Straight

Rectangular power connector featuring 14 female socket contacts for crimp termination. This free-hanging, cable-mount receptacle offers a 13A current rating and a 600V AC/DC voltage rating. Constructed from UL94 V-0 rated nylon in a natural/white color, it operates within a -40°C to 105°C temperature range. Key specifications include a 4.2mm pitch, 2 rows, and dimensions of 30.6mm length, 15.1mm height, and 19.6mm depth. Approvals include UL, CSA, and TUV, with RoHS compliance.

Voltage Rating600V

Current Rating13A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

Molex 39-01-2145 technical specifications.

General

Approvals	UL, CSA, TUV
Color	Natural, White
Contact Type	Female Socket
Current Rating	13A
Depth	19.6mm
Flammability Rating	UL94 V-0
Gender	Female
Height	15.1mm
Housing Color	Beige
Lead Free	Lead Free
Length	30.6mm
Material	Nylon
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	600V
Max Voltage Rating (DC)	600V
Mount	Free Hanging, Cable
Number of Contacts	14
Number of Lines	2
Number of Poles	14
Number of Positions	14
Number of Rows	2
Orientation	Straight
Packaging	Bulk
Pitch	4.2mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.165inch
Series	Mini-Fit® Jr™ 5557
Termination	Crimp
Voltage Rating	600V
DC Rated Voltage	600V
Width	15.1mm
