20-position, 2-row rectangular power connector with female socket contacts designed for crimp termination. This receptacle features a 4.2mm pitch and a 13A current rating, with a maximum voltage rating of 600V AC/DC. Constructed from UL94 V-2 rated Nylon, it operates within a temperature range of -40°C to 105°C and is RoHS compliant. Approvals include UL, CSA, and TUV.
Voltage Rating600V
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
Molex 39-01-2200 technical specifications.
General
Approvals
UL, CSA, TUV
Color
Beige
Contact Gender
Female
Contact Type
Socket
Current Rating
13A
Depth
19.6mm
Flammability Rating
UL94 V-2
Gender
Receptacle
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
14.1mm
Housing Color
Natural
Lead Free
Lead Free
Length
43.2mm
Material
Nylon
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
Mount
Cable
Number of Circuits
20
Number of Contacts
20
Number of Poles
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Pitch
4.2mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
5557
Termination
Crimp
Voltage Rating
600V
Voltage Rating (AC)
250V
DC Rated Voltage
600V
Width
15.1mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Molex 39-01-2200 Datasheet
Download the complete datasheet for Molex 39-01-2200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

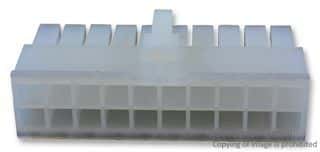

Product Images
