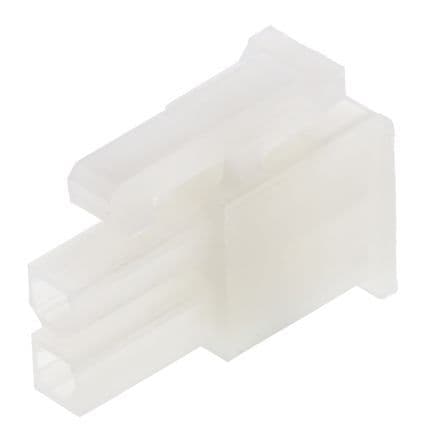

Rectangular power connector featuring a straight, free-hanging, cable-mount design with two positions and two rows. This female receptacle accepts crimp terminals, supporting wire gauges from 20 to 16 AWG. It offers a current rating of 9A (max 12A) and a voltage rating of 600V AC/DC, operating within a temperature range of -40°C to 105°C. The connector housing is natural colored, UL94 V-2 flammability rated, low halogen, and lead-free.
Voltage Rating600V
Current Rating9A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 39-01-3022 technical specifications.
General
Contact Gender
Female
Contact Type
Female Socket
Current Rating
9A
Depth
19.6mm
Flammability Rating
UL94 V-2
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
7.39mm
Housing Color
Natural
Lead Free
Lead Free
Length
14.4mm
Max Current Rating
12A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600V
Mount
Free Hanging, Cable
Number of Contacts
2
Number of Positions
2
Number of Rows
2
Orientation
Straight
Package Quantity
11500
Packaging
Bulk
Pitch
4.2mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.165inch
Series
Mini-Fit® Jr™ 5557
Termination
Crimp
Voltage Rating
600V
Width
7.39mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Compliant
Datasheet
Molex 39-01-3022 Datasheet
Download the complete datasheet for Molex 39-01-3022 to view detailed technical specifications.
