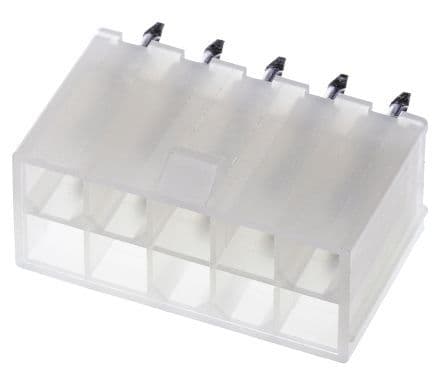

39-28-1103

10 Pos, 600V, 7A Male Power Connector, Solder, 4.2mm Pitch

Rectangular power connector featuring 10 male pin contacts with a 4.2mm pitch and 2 rows. This straight, through-hole mount plug offers a 7A current rating and a maximum operating temperature of 105°C. Contacts are brass or bronze with tin, copper, and gold plating, and the housing is black nylon with natural insulation. Approvals include UL, CSA, and TUV, with a UL94 V-0 flammability rating and low halogen content.

Voltage Rating600V

Current Rating7A

MountingThrough Hole, Board

Quick Jump:

Technical Specifications

Molex 39-28-1103 technical specifications.

General

Approvals	UL, CSA, TUV
Color	Natural, Clear
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Brass, Bronze
Contact Plating	Tin, Copper, Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7A
Depth	11mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	3.5mm
Housing Color	Black
Insulation Color	Natural
Insulation Material	Nylon
Lead Free	Lead Free
Lead Pitch	4.2mm
Length	23mm
Max Current Rating	3A
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	600V
Max Voltage Rating (DC)	600.6kV
Mount	Through Hole, Board
Number of Circuits	8
Number of Contacts	10
Number of Poles	10
Number of Ports	1
Number of Positions	10
Number of Rows	2
Orientation	Straight
Package Quantity	250
Packaging	Bulk
Pitch	4.2mm
Plating	Tin
RoHS Compliant	Yes
Row Spacing	4.2mm
Series	Mini-Fit Jr 5566
Termination	Solder
Voltage Rating	600V
Voltage Rating (AC)	600V
DC Rated Voltage	600V
Working Voltage	250V
