Technical Specifications
Molex 39-29-6028 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 9A |
| Depth | 11mm |
| Gender | Male |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Ports | 1 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Series | Mini-Fit Jr. |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-6028 Datasheet
Download the complete datasheet for Molex 39-29-6028 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

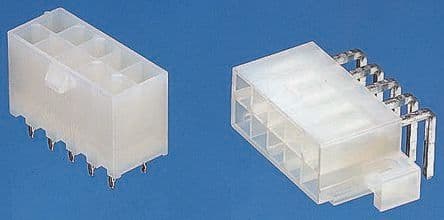

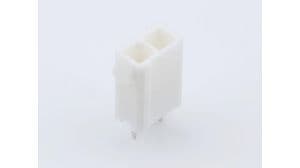

Product Images
