20-position, 2-row male pin header with a 4.2mm pitch. Features brass contacts with tin and gold plating, rated for 9A current and 600V AC/DC. Housing is black, made from UL94 V-0 rated material, with a natural colored component. Through-hole mounting and solder termination. Operates from -40°C to 105°C.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-29-9203 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Tin, Gold |
| Contact Type | Male Pin |
| Current Rating | 9A |
| Depth | 12.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 8.77mm |
| Housing Color | Black |
| Length | 40.15mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Ports | 1 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-9203 Datasheet
Download the complete datasheet for Molex 39-29-9203 to view detailed technical specifications.
No datasheet is available for this part.

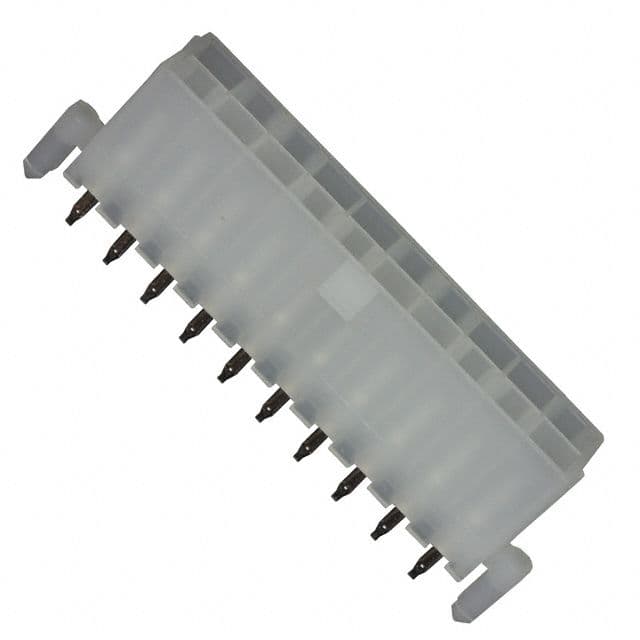

Product Images
