Quick Jump:
Technical Specifications
Molex 39-30-0063 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 13A |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 5.5mm |
| Series | 5569 |
| Termination | Through Hole |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-30-0063 Datasheet
Download the complete datasheet for Molex 39-30-0063 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

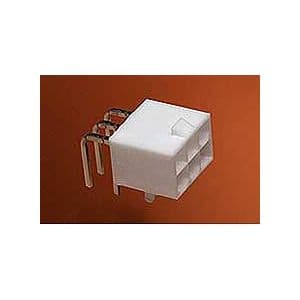

Product Images
