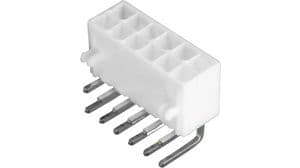

Rectangular power connector featuring 12 male pin contacts with brass, gold-plated contacts and tin/copper plating. This right-angle, through-hole mount plug offers a 4.2mm pitch and 12 positions across two rows. Rated for 600V AC/DC and a maximum current of 6A (13A rating also noted), it operates between -40°C and 105°C. The natural colored nylon housing is UL94 V-0 flammability rated and lead-free.
Voltage Rating600V
Current Rating13A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
Molex 39-30-0120 technical specifications.
General
Color
Natural
Contact Gender
Male
Contact Material
Brass, Gold
Contact Plating
Tin, Copper
Contact Type
Male Pin
Current Rating
13A
Depth
19.4mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
11.4mm
Housing Color
Natural
Lead Free
Lead Free
Lead Pitch
4.2mm
Length
26.4mm
Material
Nylon
Mating Cycles
30
Max Current Rating
6A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole, Board
Number of Circuits
12
Number of Contacts
12
Number of Ports
1
Number of Positions
12
Number of Rows
2
Orientation
Right Angle
Package Quantity
150
Packaging
Bag
Pitch
4.2mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.165inch
Series
Mini-Fit® Jr™ 5569
Termination
Solder
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Molex 39-30-0120 Datasheet
Download the complete datasheet for Molex 39-30-0120 to view detailed technical specifications.
