Technical Specifications
Molex 39-30-1021 technical specifications.
General
| Color | Natural |
| Contact Material | Gold, Brass |
| Contact Plating | Gold |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| RoHS Compliant | Yes |
| Series | Mini-Fit Jr. |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-30-1021 Datasheet
Download the complete datasheet for Molex 39-30-1021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

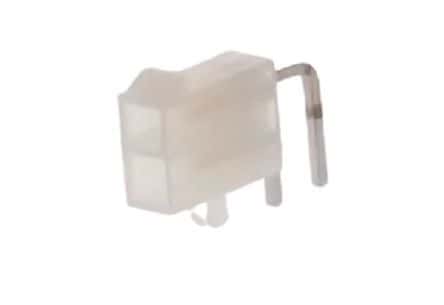

Product Images
