39-30-1040

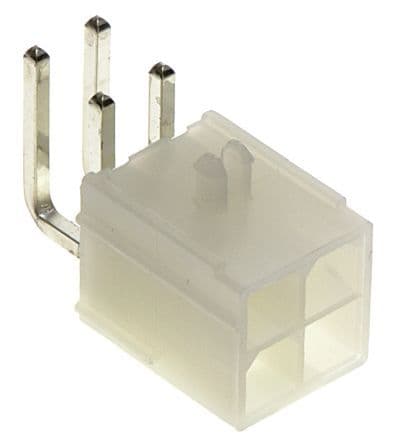

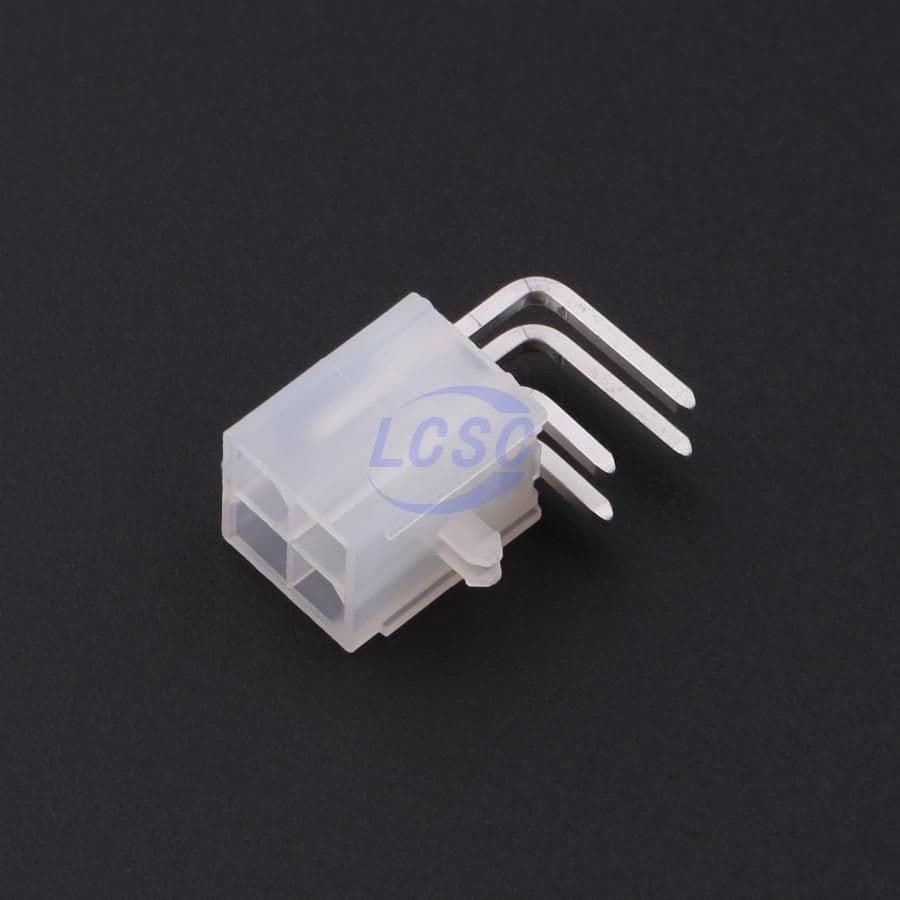

4 Pos 600V 13A Male Rectangular Power Connector, Right Angle, Through Hole

Rectangular power connector featuring 4 male contacts with solder termination and a 4.2mm pitch. This right-angle, through-hole mount plug offers a 13A current rating and 600V voltage rating, suitable for applications requiring robust power delivery. Constructed with brass contacts plated in tin and copper, housed in natural, low halogen, lead-free material with UL94 V-0 flammability. Operating temperature range is -40°C to 105°C, with UL, CSA, and TUV approvals.

Voltage Rating600V

Current Rating13A

MountingThrough Hole

Quick Jump:

Technical Specifications

Molex 39-30-1040 technical specifications.

General

Approvals	UL, CSA, TUV
Color	Natural
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin, Copper
Contact Type	Male Pin
Current Rating	13A
Depth	19.4mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	13.38mm
Housing Color	Natural
Lead Free	Lead Free
Length	9.6mm
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Circuits	3
Number of Contacts	4
Number of Ports	1
Number of Positions	4
Number of Rows	2
Orientation	Right Angle
Package Quantity	4000
Packaging	Bulk
Pitch	4.2mm
RoHS Compliant	Yes
Row Spacing	0.165inch
Series	Mini-Fit® Jr™ 5569
Termination	Solder
Voltage Rating	600V
DC Rated Voltage	600V
